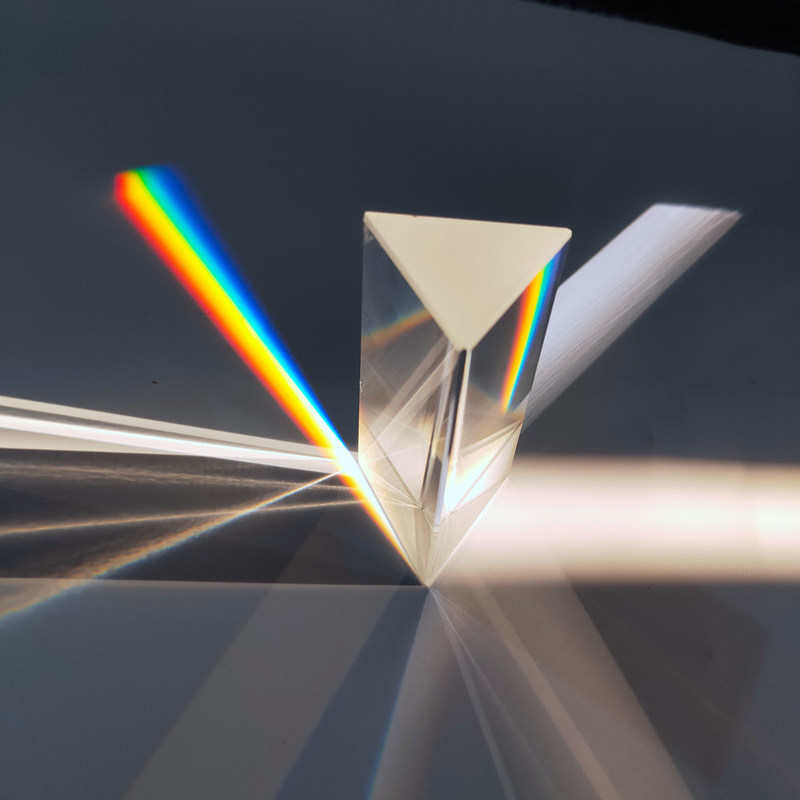

Optical Right Angle Glass Prism Shape Customizable For Lighting
Right Angle Optical Prism Lens
,Shape Customizable Fused Quartz Prism
,Lighting Triangular Glass Prism
The technical superiority of the Optical Right Angle Glass Prism lies in its geometric accuracy and surface finish. For Lighting applications, the Shape Customizable features allow for the integration of unique mounting notches or beveled edges that enhance the "sparkle" effect under LED sources. Because we use premium Optical Right Angle Glass, these prisms maintain their crystal-clear transparency over decades of use, resisting the yellowing and hazing common in acrylic alternatives.
This professional-grade Shape Customizable prism is not just a decorative ornament; it is a precision instrument designed to optimize lumen output and create the sophisticated light patterns that define premium Lighting environments.
Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in combination for image/beam displacement. UV Fused Silica Right Angle Prisms are made from UV fused silica which features low thermal expansion and excellent transmission throughout the UV, visible, and NIR spectral ranges.
| Parameter | Specification |
|---|---|
| Dimensional Tolerance | ±0.1mm |
| Angle Tolerance | ±2 Arcmin |
| Surface Flatness | 1/4 Lambda or 1/8 Lambda |
| Surface Quality | 60/40, 40/20 or better |
| Material | BK7/K9/UV fused silica |
| Clear aperture | >90% |
| Bevel | Protective bevel as needed |
| Coating | Custom |
The following table details the technical parameters applied to our Optical Right Angle Glass Prism series, specifically tailored for the Lighting industry.
| Feature | Specifications for Optical Right Angle Glass | Operational Advantage |
|---|---|---|
| Material Substrate | Extra-Clear Optical Glass / K9 | Maximum "brilliance" for Lighting |
| Geometry | Shape Customizable Designs | Fits proprietary Lighting fixtures |
| Refractive Index | 1.51 to 1.62 (High Index available) | Vibrant light bending in the Prism |
| Surface Quality | 60-40 to 40-20 Scratch-Dig | Pristine aesthetic for Optical Right Angle Glass |
| Angular Precision | ±3 to ±10 arc minutes | Consistent light paths for Lighting |
| Size Range | Customizable (5mm to 200mm+) | Scalable for any Shape Customizable project |
| Thermal Stability | Up to 280 °C | Safe for high-power Lighting sources |
| Transmission Rate | > 91.5% (Uncoated) | High efficiency for Optical Right Angle Glass |
- High-End Chandeliers: Using the Shape Customizable prisms to create multi-layered, refractive light curtains
- Architectural Wall Washers: Implementing the Optical Right Angle Glass Prism to direct light at precise angles along vertical surfaces
- Museum Display Lighting: Utilizing the Lighting prism for glare-free, focused illumination on sensitive artifacts
- Commercial Product Photography: Using the Optical Right Angle Glass to split and diffuse light for professional studio effects
This section provides authoritative insights into the selection and use of the Optical Right Angle Glass Prism in professional environments.
-
